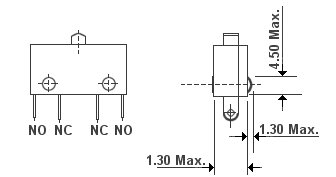

MS-1 with rivetted body |
Contact Arrangement: |
NO / NC |
Permissible Temp For With/Without Load: |
-20 deg. C. to +85 deg. C |
Permissible Temp For Soldering: |
270 deg. C. / 5sec. max . |
Operating Force: |
200 gms. +/-50gms . |
Material: |
PBT (Black) . |
Terminals: |
Solder - type |
Product Weight: |
2.9 gms. Max. . |
Insulation Resistance(Min): |
100 M Ohms at 500 VDC |
H. V. Breakdown Test: |
1 KVAC For 1 Minute . |
Electrical Life: |
10000 Cycles Min. |
Current Carrying Parts: |
Terminals - Brass, Silver plated |
Contact Resistance(Max, Initial): |
20 m Ohms |
Contact & Voltage Rating: |
4 A, 250V AC |
Switch Type: |
Momentary SPDT Micro Switch |
Mechanical Life: |
50,000 Cycles min . |
