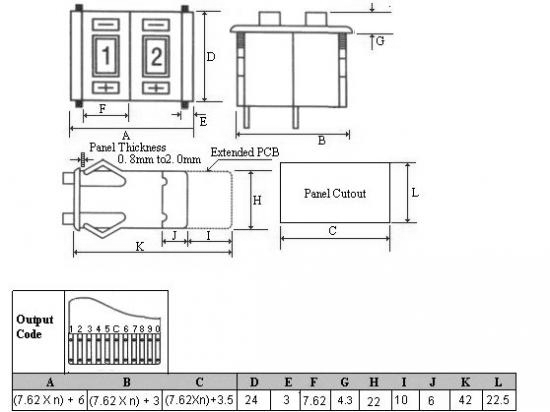

PCS-221E

PCS-221E PCS-221E
Permissible Temp. for Soldering: 270 deg. C for 5 sec.
Operating Temperature: -20 deg. C to +85 deg. C
Continuous Current: 1 Amp. MAx.
Life: 10000 Cycles .
Insulation Resistance(Min): 100 M Ohm at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Contact Resistance, Max(Initial): 200 m Ohms
V/A Rating: 100 mA, 50 VAC / 28 VDC
Height: 22 mm
Type: Switch with decimal output - 1 Pole 10 Way Extended PCB
Material - Housing: Engineering Thermoplastics
Mounting: Panel, Snap-in type
Panel Thickness: 0.80 - 2.00
