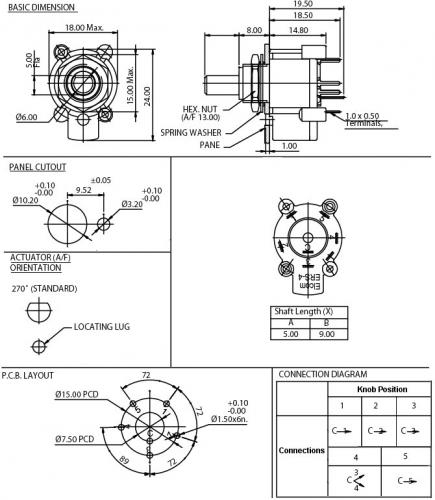

ERS-45

ERS-45 ERS-45

Rotary Switch 1 Pole 5 Way, Shorting (Make before Break)

No. of Poles: 1
Terminals(Min): Solder-Type/PCB Type
Reference Standard: IEC-1058-1
Permissible Temp. For Soldering: 270 deg. C for 5 sec. Max.
Permissible Temp For With/Without Load: -20 deg. C to + 85 deg. C
Mounting: Panel Mounting / PCB Mounting
Insulation Resistance at 500V DC(Min): 1000 M Ohms Min.
H. V. Break Down Test: 1.5 KV AC
Electrical Life: 20,000 Cycles Min.
Contact Resistance(Max, Initial): 20 m Ohms Max.
No. of Ways: 5
