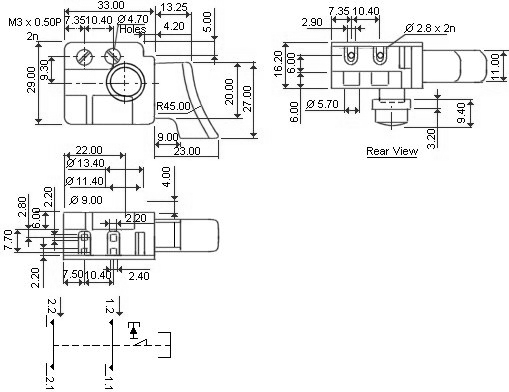

Power Tool Switch |
Type: |
Momentary with Lock on Button, Double Pole, NO |
Material - Terminals: |
Copper |
Material - Plastic Parts: |
Nylon |
Permissable Temp.With / Without Load: |
-20 deg. C to + 85 deg. C |
Insulation Resistance after Humidity Test(95% RH, 27 deg. C 48 hrs): |
20 M Ohms Min. |
Stall Test (With Rotor Locked) for 10 Amp.: |
50 Cycle Min. - on Period 0.5 sec - Off period 9.5 sec. |
Actuating Force: |
24 +/- 3N (2.5 Kg +/-310gm) |
Electrical Life: |
50,000 Cycles Min. |
Mechanical Life: |
50,000 Cycles Min. |
Terminals: |
Screw-type & Push-in type |
H.V.Break Down Test (For 1 Minute): |
4 KV |
Insulation Resistance at 500 V DC: |
100 M Ohms Min. |
Contact Resistance (Initial): |
20 m Ohms Max. |
V/A Rating: |
6(6)A 250V AC |
Material - Contacts: |
Silver & Copper |
