Elcom » DIN 43650 Connectors » DIN Connector Sockets » MEM-307/S-9

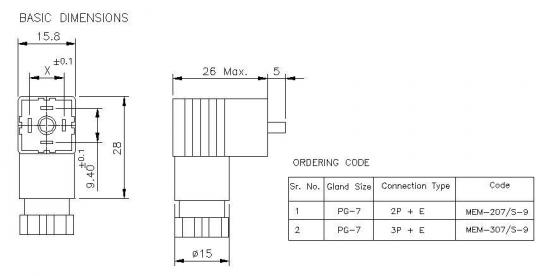

MEM-307/S-9 MEM-307/S-9
No. of Poles: 3 Pole + Earth
Reference Standards: DIN-43650, ISO-4400
Voltage: 250V AC
Material For Rubber Gasket: Nitril / Silicon
Material Body: polyamide
Insulation Resistance: 100 M Ohms min.
H. V. Breakdown Test: 2 KV AC For 1 Minute .
Terminals: Screw-type
Current Rating: 6 Amps.
Permissible Temp. With/Without Load: -20 Deg. C to +85 Deg.C
Current Caring Parts: Brass, Silver Plated
Contact Resistance: 20 m Ohms max. (Initial)
Colours: Black / Gray
Gland Size: PG-7
Mounting: Screw-type
