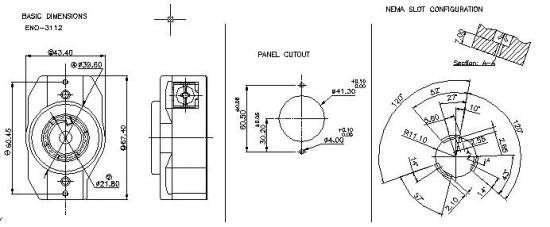

Nema Twist Lock 20A, 125VAC |
Type: |
Twist lock L5-20 type |
Reference Standard: |
UL-498, UL-486E, NEMA WD 6 : 2002, CAN/CSA C22.2 No.0-M91, CSA C22.2 no. 42-99 |
Permissible Temperature with/without load: |
-20 deg.C to +65deg. C |
Terminals: |
Screw-type, #14 to #10AWG |
Mounting: |
Panel, Screw-type |
H.V.breakdown test (For 1 minute): |
2 KVAC |
Insulation Resistance at 500 VDC: |
100 Mohms min. |
Contact Resistance (Initial): |
10 mohms max. |
V/A Rating: |
125VAC, 20A |
Approvals: |
UL (C,US) File no. E258604, CSA(C,US) File no. 239539 |
|
|
|
|
