Elcom » Nema Twist Lock Receptacles » NEMA Resceptacles » ENO-3122

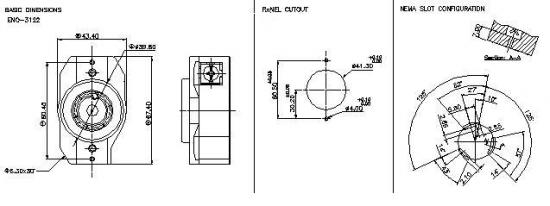

ENO-3122

ENO-3122 ENO-3122

Nema Twist Lock 20A, 250VAC

Type: Twist lock L6-20R type
Reference Standard: UL-498, UL-486E, NEMA WD 6 : 2002, CAN/CSA C22.2 No.0-M91, CSA C22.2 no. 42-99
Permissible Temperature with/without load: -20 deg.C to +65deg. C
Terminals: Screw-type, #14 to #10AWG
Mounting: Panel, Screw-type
H.V.breakdown test (For 1 minute): 2 KVAC
Insulation Resistance at 500 VDC: 100 Mohms min.
Contact Resistance (Initial): 10 mohms max.
V/A Rating: 250VAC, 20A
Approvals: UL (C,US), File no. E258604, CSA (C,US), File No. 239539
