Schurter » SMT Fuses » SMT

SMT

SMT SMT

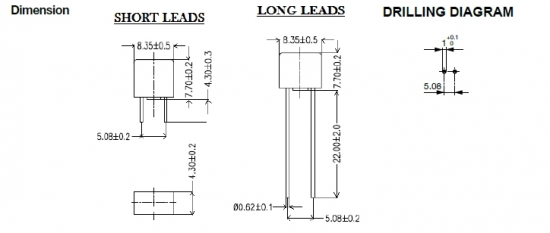

Subminiature Fuse, SMT 8.35 x 4.3 mm, Time-Lag T

Rated Voltage : 250 VAC
Rated current : 100mA to 6.3A
Breaking Capacity : 35A or 10times the rated current
Characteristic Time : Lag T
Mounting : PCB,THT
Admissible Ambient Air Temp.: -40 °C to 85 °C
Climatic Category : 40/085/21 acc. to IEC 60068-1
Material: Housing - Thermoplastic, UL 94V-0
Material: Terminals - Tin-Plated Copper
Unit Weight : 0.37 g
Storage Conditions: 0 °C to 60 °C, max. 70% r.h.
Product Marking , Rated current, Rated voltage
Soldering Methods: Wave, Iron
Solderability : 235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 1
Resistance to Soldering Heat : 260 °C / 5 sec acc. to IEC 60068-2-20, Test Tb, method 1A
Resistance to Vibration: acc. to IEC 60068-2-6, test Fc
