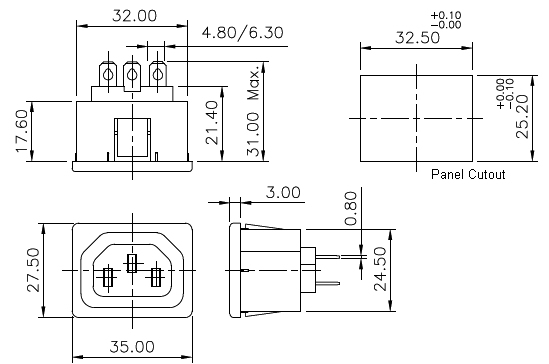

Snap mounting 1 way IEC outlet |
Mounting Style: |
Panel, Snap-in type |
Terminals: |
Solder-type or Fast-on 4.8 or 6.3 |
Reference Standard: |
IEC 60320-1, UL-498, CSA : C22.2no.182.3 |
Permissible Temp With/Without Load: |
0 deg. C to +70 deg. C |
Permissible Temp For Soldering: |
270 deg. C for 5 seconds max. |
Panel Thickness: |
Standard - 1.5 (C), Other (on request) - 1.0(A), 1.2(B), 2.0(E), 3.0(J) |
Material - Terminals: |
Copper alloy, Tin plated |
Material - Body: |
Nylom-6, GF 20%, V2 |
Insulation Resistance at 500 V DC: |
1000 M Ohms min. |
H. V. Break Down Test: |
2 KV AC for 1 minute |
Contact Resistance (Initial): |
10 m Ohms Max. |
Current & Voltage Rating: |
10 Amps (VDE), 15 Amp (UL, CSA) 250 VAC |
Approvals: |
VDE, CE, UL(C,US) |
|
|
|
|
