| Maximum Average Forward Current IF(AV) in (A) : |
1.0 |
| Maximum Repitative Reverse Voltage (VRRM) in (V): |
1200 |
| Maximum Forward peak Surge Current @ 8.3ms Single Half Sine Wave IFSM in (A): |
30 |
| Maximum Forward Voltage @ TA=25deg.C (VF) in (V): |
1.0 (1F=1A) |
| Maximum Reverse Current @ VRRM IRRM(uA) - TA=25 deg.C: |
5.0 |
| Maximum Reverse Current @ VRRM IRRM(uA) - TA=50 deg.C: |
50 |

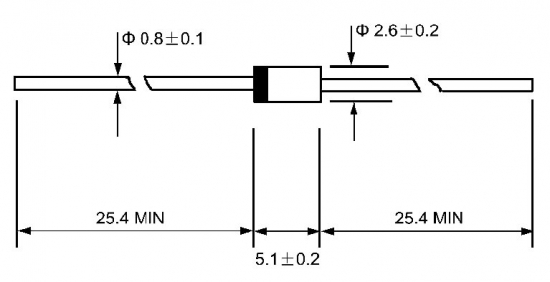

| Package: |
DO-41 |
