- IP67
- High impact & heat resistant Polyamide material
- Color coding as per Voltage
- Terminal with Double Screws, zinc plated
- Glow wire Index: 850° C
- UL-94 V-2 Flame retardant material
- Cable gland for external cable grip |
| IP Protection Type: |
IP67 |
| Torque for screws: |
0.9 Nm Max |
| Weight (Approx): |
345 gms |
| Compliance Marking: |
CE, RoHS |
| Reference Standard: |
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686 |
| Material - Terminal Screw: |
MS, Zinc Plated |
| Material -Terminals: |
Copper Alloy |
| Material - Body: |
Polyamide, V2 |
| Permissible Temperature: |
-25 deg C to +90 deg C |
| Plug Angle: |
Straight |

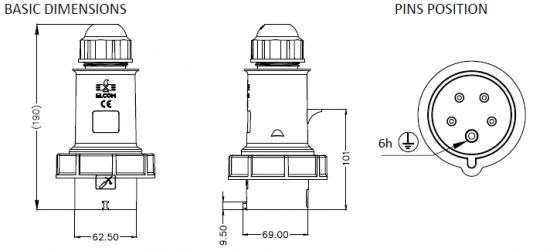

| Earth Position: |
6h |
| Applicable Cable Size: |
4 to 6 sq.mm |
| Terminals: |
Screw-type |
| H.V Breakdown Test for 1 Min : |
2 kVAC |
| Insulation Resistance at 500VDC: |
100 Mohm min |
| No. of Poles: |
5 Pin (3P+N+E) |
| Current Rating: |
32A, 200V/346V-250V/415C AC, 50 - 60Hz |
| Torque for cable gland: |
4 Nm Max |
|
|
|
