- IP44 protection rating
- High impact & heat resistant Polyamide material
- Color coding as per voltage
- Terminals with zinc plated screws |
| Reference Standard: |
IEC/EN 60309-1, IEC/EN 60309-2, UL-1686 |
| Compliance Marking: |
CE |
| IP Protection type: |
IP44 |
| Material - Terminal screws: |
MS, Zinc Plated |
| Material - Terminals: |
Copper Alloy |
| Material - Body: |
Polyamide |
| Permissible Temp.: |
-25 deg C TO +90 deg C |
| Plug Angle: |
Straight |

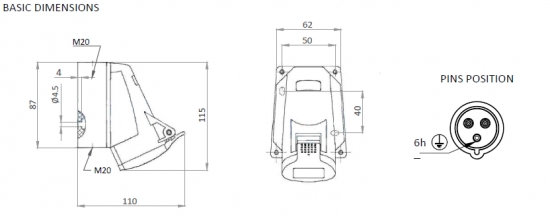

| Earth Position: |
6h |
| Applicable Cable Sizes: |
1.5–2.5 sqmm |
| Terminals: |
Screw-type |
| H.V.Break Down Test (For 1-Minute): |
2 KV AC |
| Insulation Resistance At 500 V DC: |
100 M ohms min. |
| V/A Rating: |
16A, 200V-250V AC, 50-60 Hz |
| Plug Type: |
16A, 3 Pin (2P+E) |
| Weight - Approximately: |
215 grams |
|
|
|
